Thairath Bangkok Governor Election 2026

🗳️ Thairath Bangkok Governor Election 2026 – Live Results Platform

📚 Overview

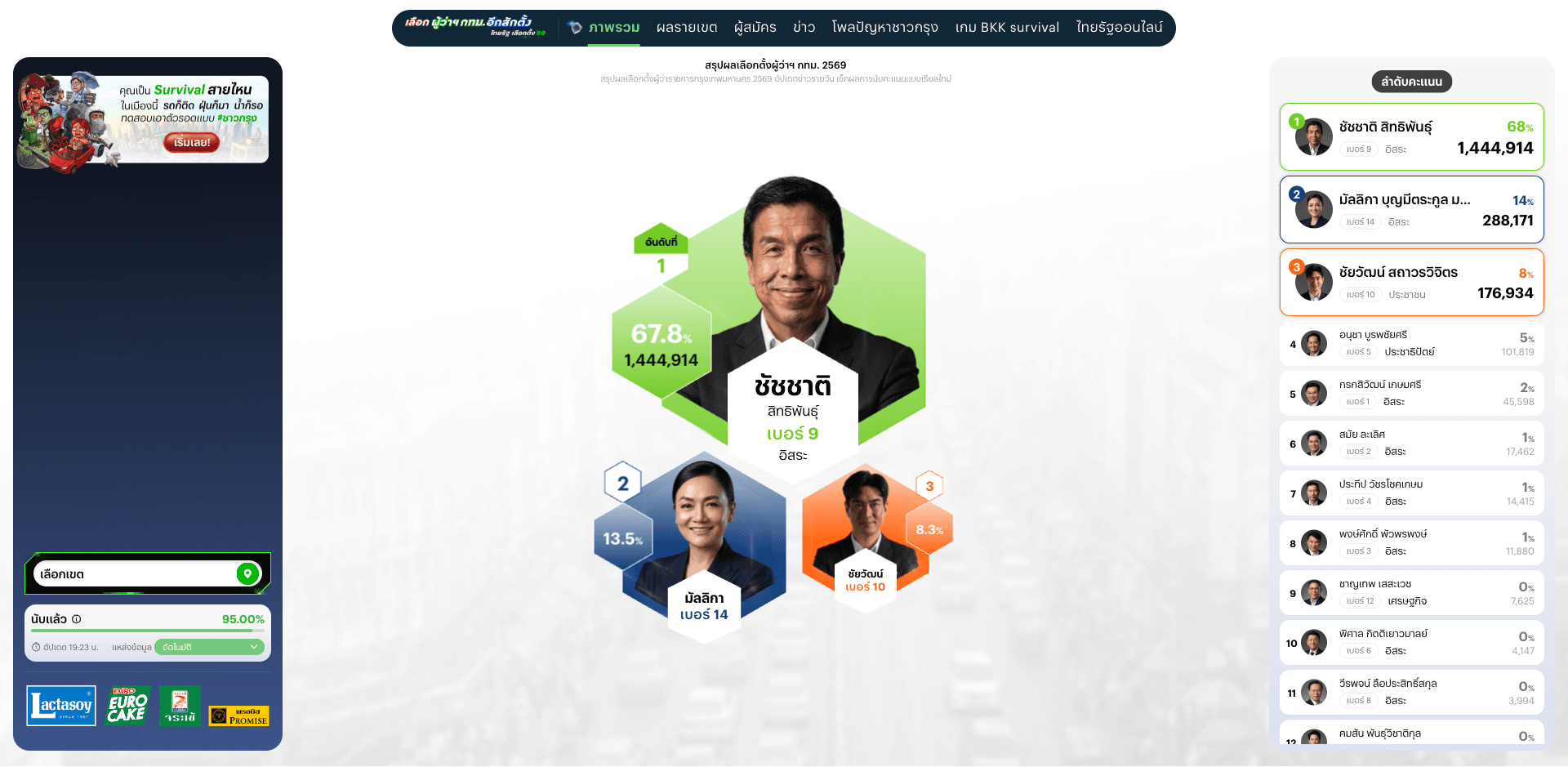

• Follow the governor count live, with every candidate's votes and share

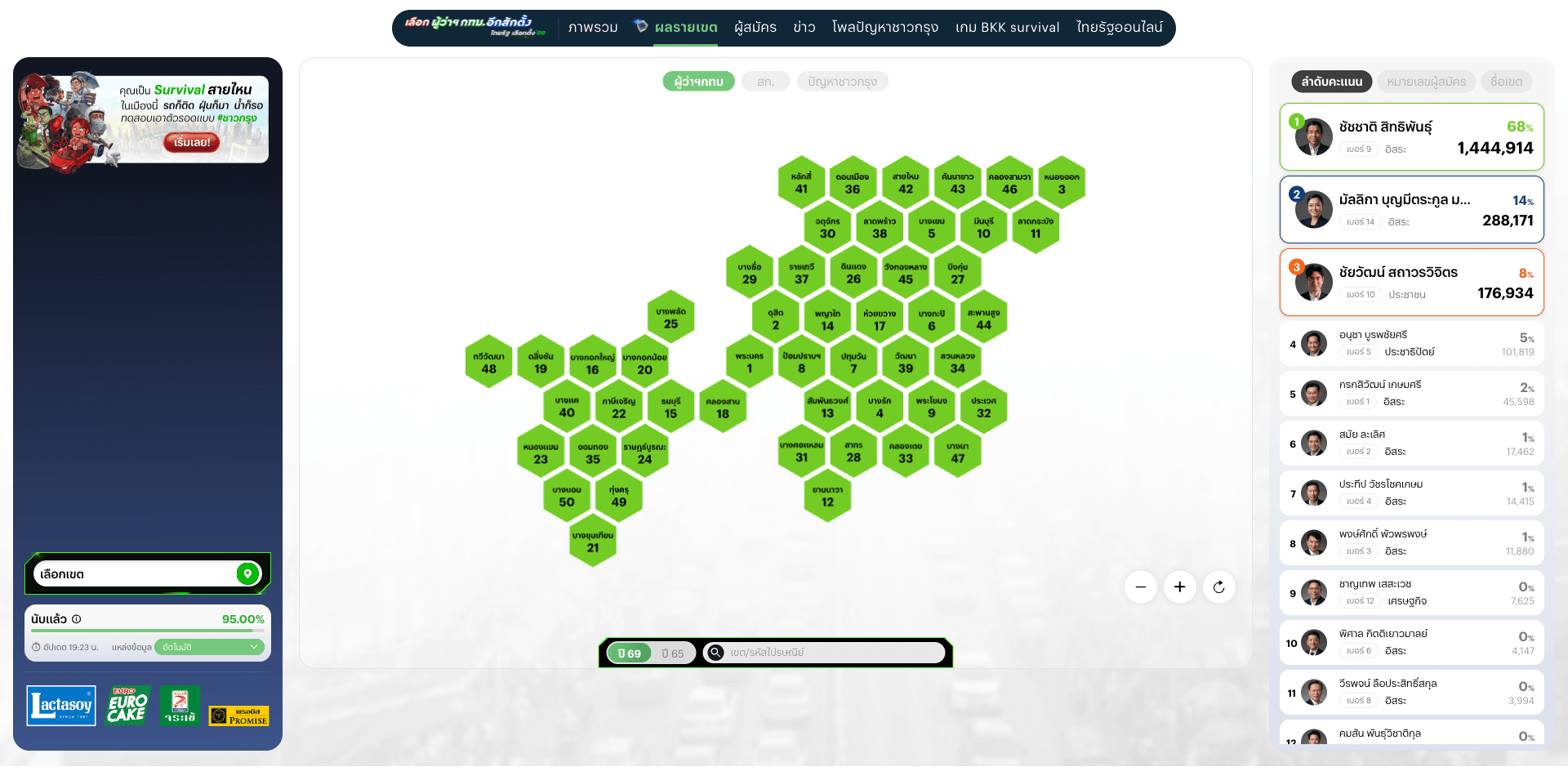

• Explore the 50-district hex map and each district's governor and council results

• Browse and compare governor candidates and their policies

• See how Bangkok voted in 2022 next to 2026

• Read the poll on the city's most urgent problems

• Scroll an endless feed of news, videos and shorts

🚀 Core Architecture

🔄 Data Pipeline

• Results partner API → scheduled sync jobs (Agenda on PostgreSQL) → raw tables

• A publish switch in the CMS copies raw data into the published tables, so nothing reaches readers before it is checked

• Two result sources from the partner (realtime and final), chosen by the CMS (auto, realtime or final) or per request

• Master data (50 districts, 276 candidates, 10 parties), the 2022 results (412 candidates, 1,994 score rows) and 7,461 sub-district search entries converted by scripts into static JSON

• Sync jobs tightened from every 5 minutes to every 30 seconds on election day

⚙️ API and Caching

• Express 5, Drizzle ORM and PostgreSQL, deployed on Kubernetes

• A Redis response cache on every public route, keyed by path and sorted query, gzip-compressed above a size threshold, with an X-Cache header (HIT, MISS, REFRESH or BYPASS)

• TTLs per kind of data: 60 seconds for the livestream, 10 minutes for feeds and timelines, 1 day for master and 2022 data

• A refresh query flag and a CMS

  Clear Cache

  button to push a correction out at once

• Live result responses carry the CMS settings, so the site knows the current source and how often to refresh

• OpenAPI docs for every route

🛡️ Partner Resilience

• Two partner API keys: on HTTP 429 the client switches keys, then waits for the rate-limit reset before switching back

• Every partner request retries twice with a 5-second timeout

🚀 Key Features

🧭 CMS for Editors

• Email one-time-code login, with the session in a cookie

• Candidate profiles and policies with image upload, the election timeline and the livestream link

• Publishing controls: election started, publish partner data, data source, and live refresh on or off with its interval

• One-click cache clear

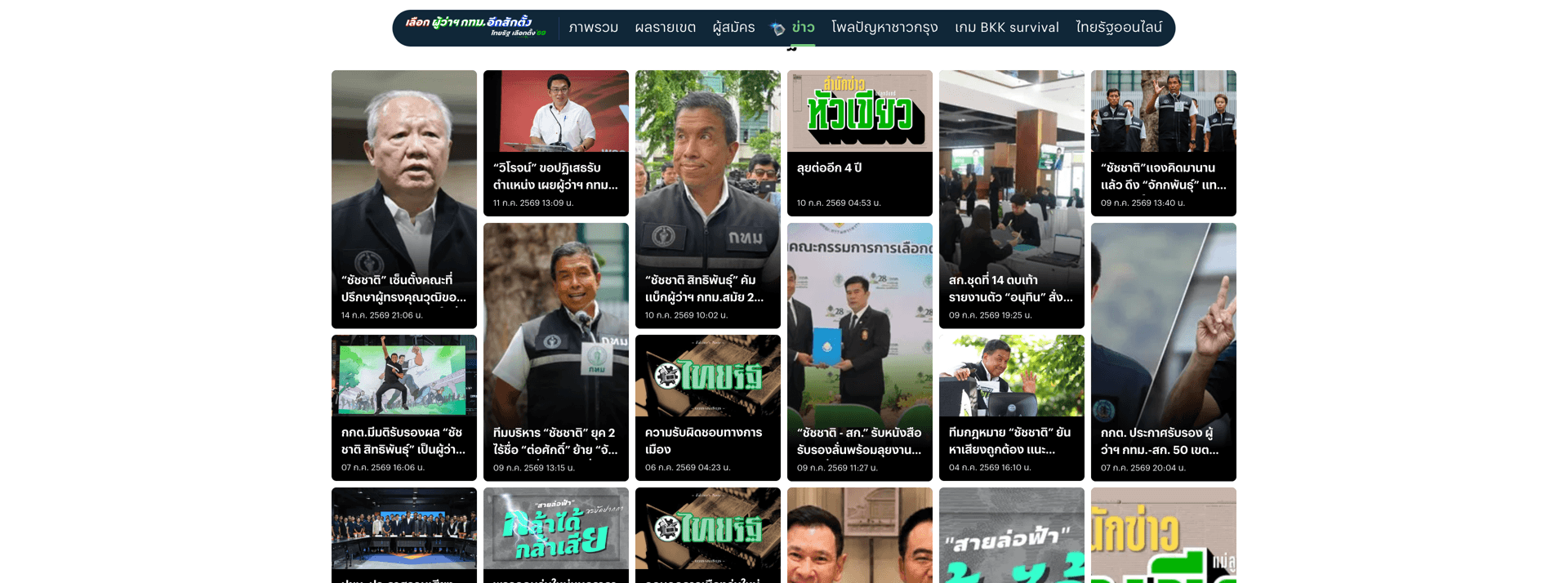

📰 Infinite News Feed

• The first 18 items are rendered on the server with loading skeletons, then a virtualised masonry grid (masonic) loads the next page as the reader nears the end

• Cursor-based pagination for each tab (all, news, videos, shorts), each with its own state and a lazy first load

• An in-flight guard so a tab never requests the same page twice

• A tall and short rhythm in the grid, with measured frame sizes for videos and shorts

✨ Motion

• A splash screen with a 0 to 100 counter and four columns sliding away

• Parallax on the home cover (desktop only)

• An election timeline with a tuk-tuk that drives to the current milestone

• Top-three result counters that count up to the latest totals

🛠️ Tech Stack

• Frontend

  : Next.js 16, React 19, Emotion, Framer Motion, masonic

• Backend

  : Node.js, Express 5, Drizzle ORM

• Data

  : PostgreSQL, Redis (cache and pub/sub), Agenda jobs

• CMS

  : Vite, React, shadcn/ui

• Infrastructure

  : Docker, Kubernetes, Jenkins

👨‍💻 Responsibilities

• Owned all the data: static master data, the 2022 results, candidate and party images, live results from the partner, and Thairath's own poll and news feeds

• Designed and built the backend API (107 of its 143 commits)

• Built the partner integration, the sync jobs, the raw and published tables, and source switching

• Built the Redis cache layer and the cache-clear tooling

• Set up the CMS and built its config and cache-clear modules and cookie login

• Integrated the frontend with the API: feeds and timelines, one client that switches between server and browser endpoints, and failed calls that never break the page

• Built the news page and its infinite feed

• Built the home page motion: splash screen, parallax, timeline and result counters

• Ran the election-day operation: sync intervals, source switches and cache clears

🎯 Impact

• 2.37M+ page views from 91,800+ active users

  (Google Analytics; the real count is likely higher)

• 16.5 views per session

  and

  1m 30s

  average engagement per session

• The district council results alone drew

  1.43M views

  , all served from the cached API

• Editors controlled every publish, and a correction reached readers in one click instead of waiting for caches to expire

• Delivered the data, API, CMS and frontend integration in about eight weeks, from 5 May to election night on 28 June 2026
